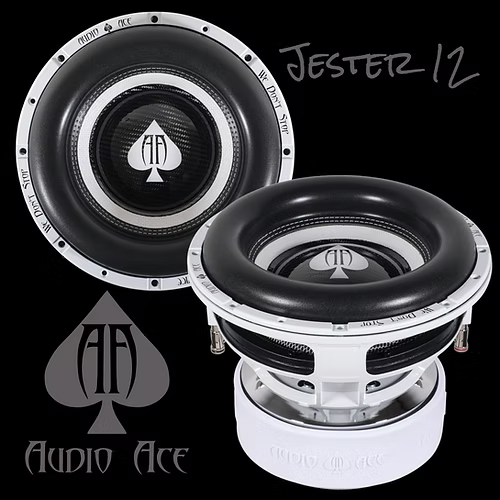

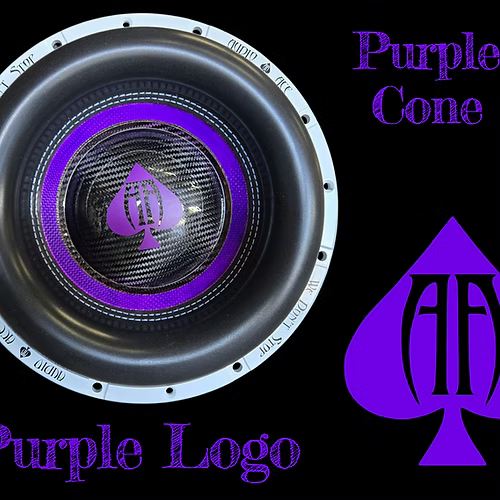

Audio Ace Jester 12" 3000W RMS Dual-4-Ohm Subwooofer With Dyeable Cone

Built with the goal of achieving a high level of SQ/SPL.
The Jester is rated at 3,000 RMS. Designed with fairly low
FS and a strong motor structure allows the Jester to be versatile
enough to sound great across a wide range of music. Whether you
are looking to be one of the loudest vehicles in your town, or
just wanting to enjoy the bass in your daily driver at EXTREME
sound levels, the Jester is a great choice!

• "WeDontStop" Locking Ring
• 12" High Performance Subwoofer
• Dual 2 ohm coil
• Heavy Duty Die Cast Aluminum Basket
• 3" BACCAW 4 Layer Voice Coil
• 300 Oz Magnet Structure
• 4 Layer 10" Spider
• 47.6Lbs Total

 Electrical Parameters

• Re 3.60
• Le 3.009
• L2 7.645
• R2 19.44
• Cmes 523.52
• Lces 38.54
• Res 41.07
• Fs 35.4
• Mms 454.545
• Mmd 443.672
• Rms 21.141
• Cms .044
• Kms 22.53
• Bl 29.466
• Qtp .470

Loss Factors

• Qms 4.787
• Qes .420
• Qts .386
• Qtp .400

Misc Parameters

• Vas 12.8560
• n0 .131
• Lm 83.37
• Lnom 83.83
• Sd 452.39

Box Recommendation

• 2-2.6 Cubic foot ported
• 14-16 squared inches of port per cubic foot
• 28-34hz tuning
• Optimal in ported 4th and 6th order enclosures
• Not recommended for sealed application
• Mounting Depth 8.5 inches
• Cutout Diameter 11.25 inches
