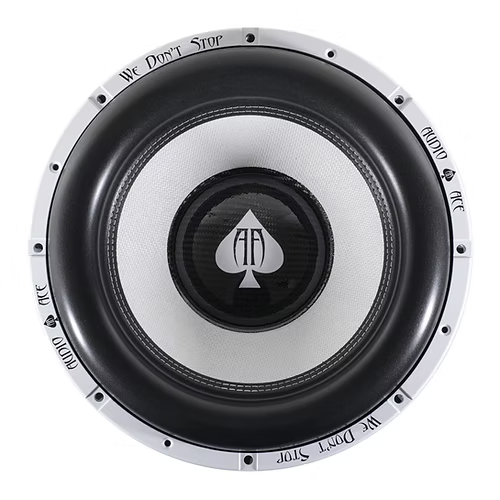

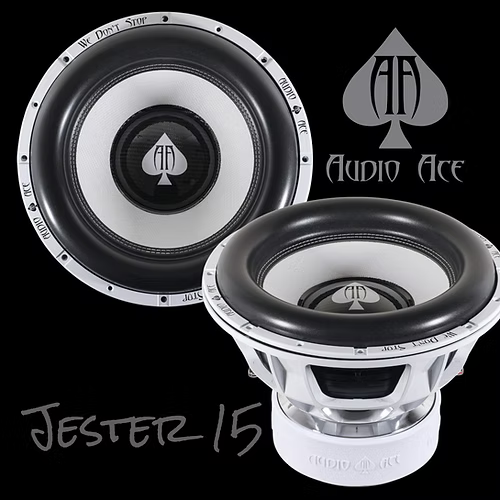

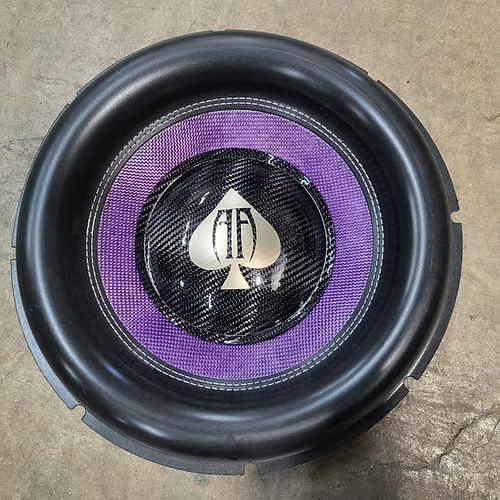

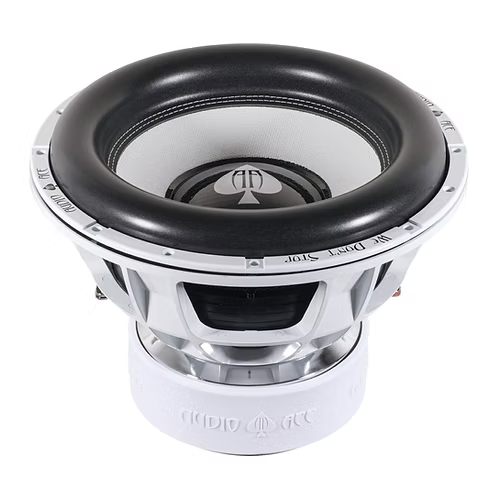

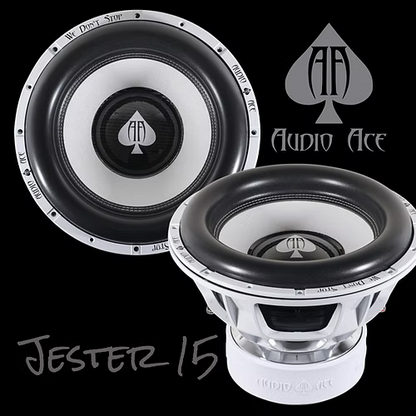

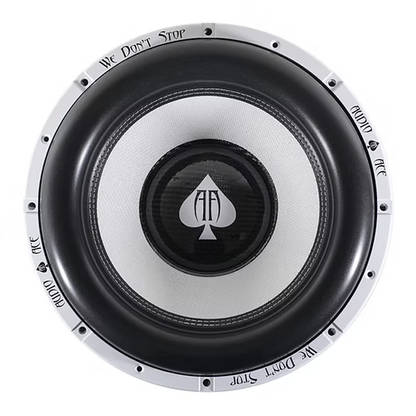

Audio Ace Jester 15" 3000W RMS Dual-4-Ohm Subwooofer With Dyeable Cone

Built with the goal of achieving a high level of SQ/SPL.
The Jester is rated at 3,000 RMS. Designed with fairly low
FS and a strong motor structure allows the Jester to be versatile
enough to sound great across a wide range of music. Whether you
are looking to be one of the loudest vehicles in your town, or
just wanting to enjoy the bass in your daily driver at EXTREME
sound levels, the Jester is a great choice!

• Size 15 Inch
• RMS 3000w

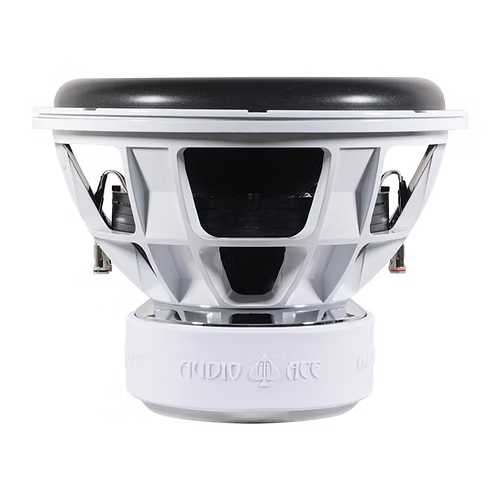

• Heavy Duty Aluminum Basket

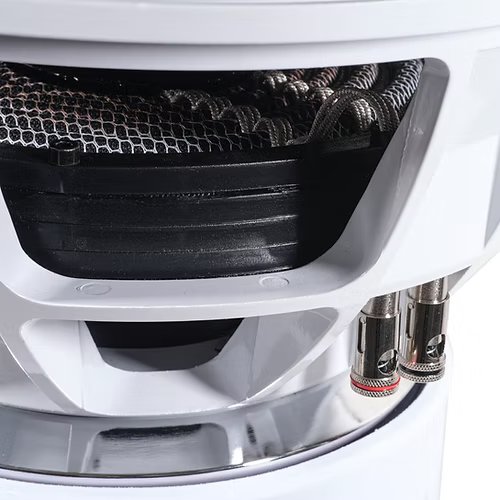

• 4layer 10" Spider
• Coil Size 3 inch BACCAW 4layer

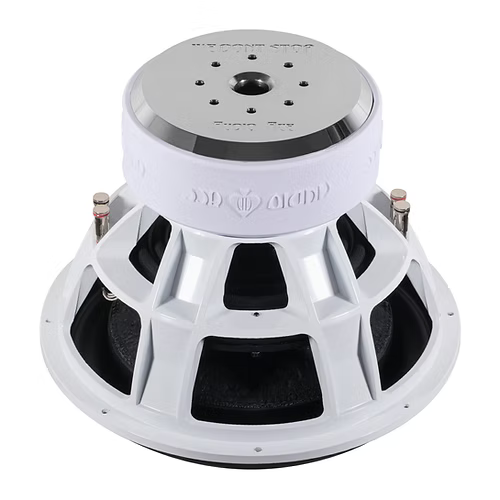

• 300oz Motor
• Impedance Dual 4 Ohm
• Re 3.52
• Le 3.341
• L2 8.625
• R2 17.07
• Cmes 681.46
• Lces 32.71
• Res 37.19
• Fs 33.7

Mechanical Parameters (Using Laser)

• Mms 551.552
• Mmd 527.404
• Rms 21.762
• Cms .040
• Kms 24.75
• Bl 28.449
• Lambda .043

Loss Factors

• Qtp .488
• Qms 5.368
• Qes .508
• Qts .464

Misc Parameters

• Vas 33.8589
• n0 .245
• Lm 86.10
• Lnom 86.65
• rmse Z 7.59
• rmse Hx 5.04
• Sd 769.45

Box Recommendation

• 3-4 cubic foot ported
• 14-16 square inches of port per cubic foot
• 28-36hz tuning
• Optimal in ported 4th and 6th order applications
• Not recommended for sealed applications
• Mounting Depth 10.07"
• Cutout 14.331"
