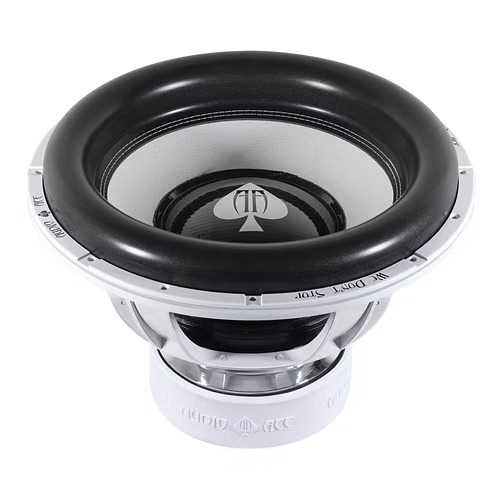

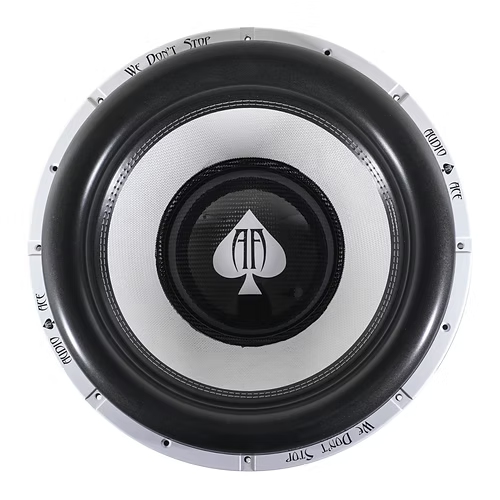

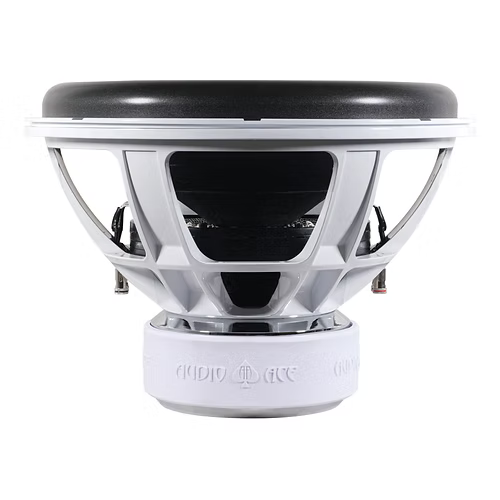

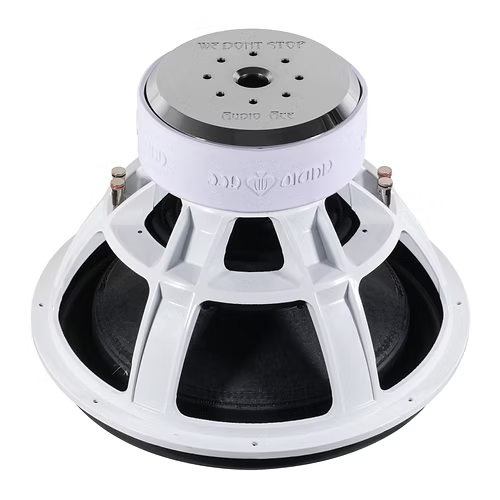

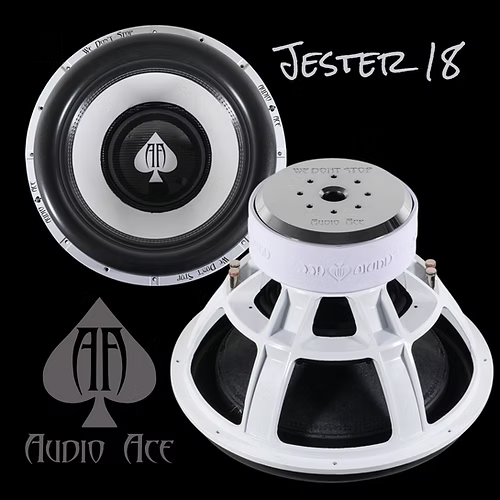

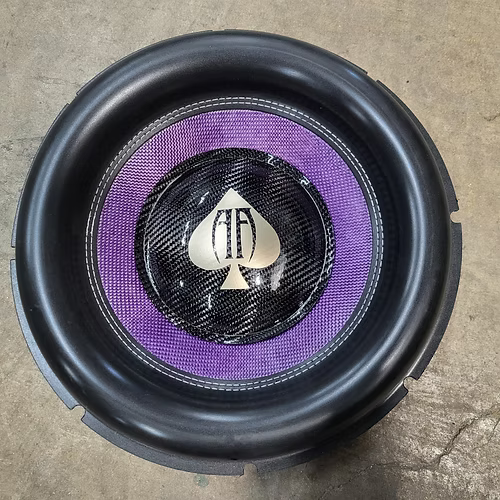

Audio Ace Jester 18" 3000W RMS Dual-4-Ohm Subwooofer With Dyeable Cone

Built with the goal of achieving a high level of SQ/SPL.
The Jester is rated at 3,000 RMS. Designed with fairly low
FS and a strong motor structure allows the Jester to be versatile
enough to sound great across a wide range of music. Whether you
are looking to be one of the loudest vehicles in your town, or
just wanting to enjoy the bass in your daily driver at EXTREME
sound levels, the Jester is a great choice!

• Size 18 Inch
• RMS 3000w
• Heavy Duty Aluminum Basket
• 4layer 10" Spider

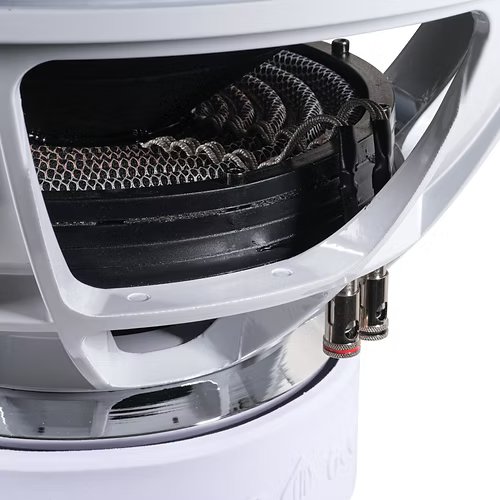

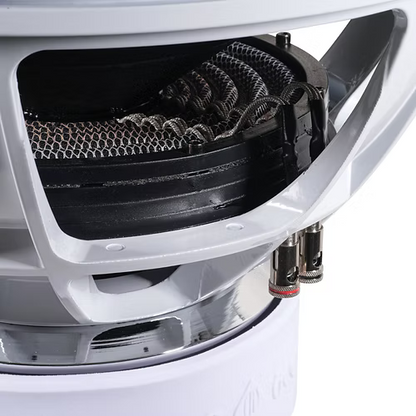

• Coil Size 3 inch BACCAW 4layer
• 300oz Motor
• Impedance Dual 4 Ohm
• Re 3.53
• Le 3.462
• L2 7.958
• R2 15.78
• Cmes 933.61
• Lces 31.84
• Res 35.07
• Fs 29.2

Mechanical Parameters (using laser)

• Mms 703.831
• Mmd (Sd) 658.596
• Rms 21.495
• Cms .042
• Kms 23.68
• Bl 27.457
• Lambda .008

Loss Factors

• Qtp .569
• Qms 6.006
• Qes .605
• Qts .550

Misc Parameters

• Vas 81.8396
• n0 .323
• Lm 87.30
• Lnom 87.83
• rmse Z 7.61
• rmse Hx 7.87

Box Recommendations

• 4.75-5.5 cubic foot ported
• 14-16 square inches of port per cubic foot
• 28-36hz tuning
• Optimal for ported 4th and 6th order applications
• Not recommended for sealed applications
• Mounting Depth 11.10"
• Cutout 16.85"
