Stetsom

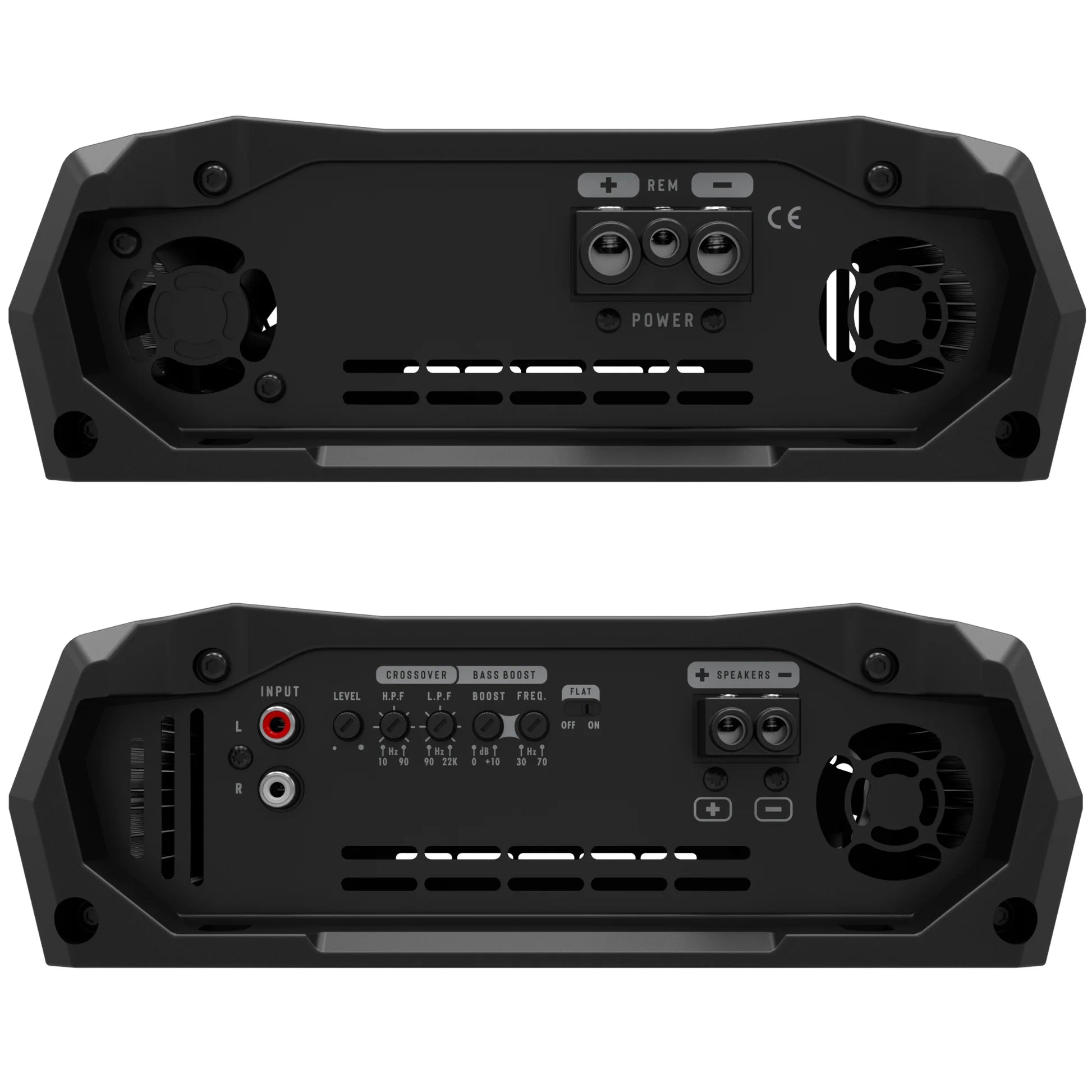

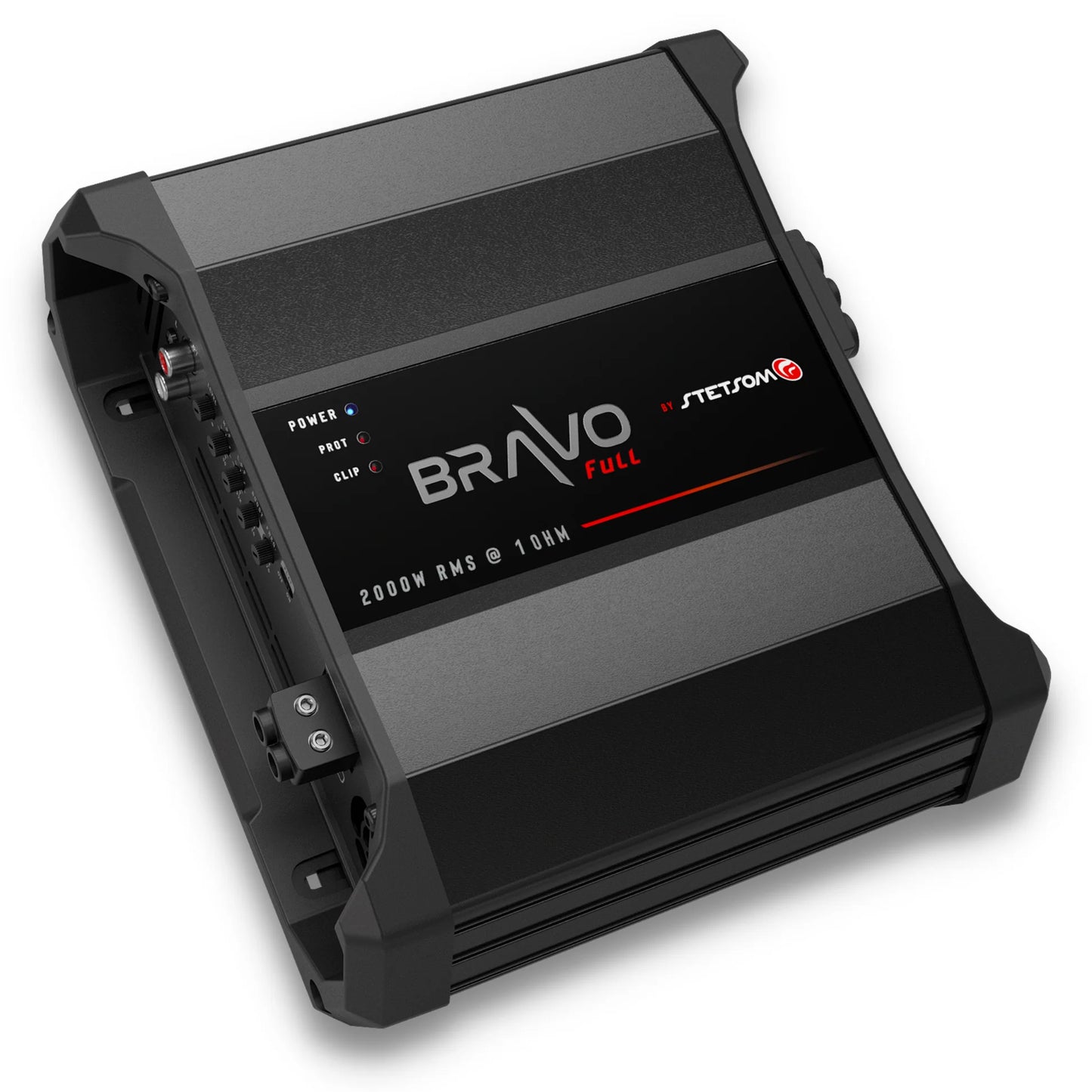

Stetsom BRAVO FULL 2K Digital Full-Range Amplifier

Stetsom BRAVO FULL 2K Digital Full-Range Amplifier

$208.99 USD

~~$241.99 USD~~ $208.99 USD

Sale Sold out

Output Impedance 1 Ohm 2 Ohms

Technical Specifications (1 Ohm)

Number of Channels	1
RMS Power at 1 Ohm @ 14.4V	3500W
RMS Power at 2 Ohms @ 14.4V	2100W
RMS Power at 1 Ohm @ 12.6V	3100W
RMS Power at 2 Ohms @ 12.6V	2000W
Minimum input sensitivity	200mV
Signal to noise ratio	>90dB
Frequency response (-3dB)	10Hz ~ 22KHz
Crossover low pass	90Hz ~ 22KHz
Crossover high pass	10Hz ~ 90Hz
Bass boost	Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance	18K Ohms
Supply voltage	9V ~ 16V DC
Musical/Bass consumption	160A/320A
Dimensions (H x W x L)	3.14" x 9.11" x 9.29"
Weight	6.39 lb

--

--

Technical Specifications (2 Ohms)

Number of Channels	1
RMS Power at 2 Ohm @ 14.4V	2750W
RMS Power at 4 Ohms @ 14.4V	1600W
RMS Power at 2 Ohm @ 12.6V	2115W
RMS Power at 4 Ohms @ 12.6V	1140W
Minimum input sensitivity	200mV
Signal to noise ratio	>90dB
Frequency response (-3dB)	10Hz ~ 22KHz
Crossover low pass	90Hz ~ 22KHz
Crossover high pass	10Hz ~ 90Hz
Bass boost	Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance	10K Ohms
Supply voltage	9V ~ 16V DC
Musical/Bass consumption	108A/217A
Dimensions (H x W x L)	3.14" x 9.11" x 7.75"
Weight	4.96 lb
